Liansuo Construction Technology Co., Ltd. is excited to unveil its latest product—the FM-certified Explosion-Relief Container for Flammable and Explosive Chemicals. This cutting-edge safety solution is designed for indoor and outdoor chemical storage, featuring reinforced structural modifications to standard containers. It is suitable for the storage and distribution of flammable liquids, compressed gases (flammable and non-flammable), chemicals, and fertilizers. Strictly adhering to FM 7-29 and FM 6049 standards, as well as regulations governing the manufacturing, storage, and handling of hazardous materials, this product sets a new benchmark in chemical safety storage.
Safety Design Compliant with FM 7-29 and FM 6049 Standards
Liansuo Construction Technology has designed the product to meet the specific storage requirements for flammable liquids and explosive substances, ensuring compliance with FM Global’s rigorous safety standards:
- FM 7-29 (Storage of Flammable Liquids):
Ensures storage facilities are equipped with fire protection, ventilation systems, and appropriate containers to effectively reduce fire risks. This product adheres strictly to fire safety requirements in its design. - FM 6049 (Explosion Venting Equipment):
Provides guidelines for explosion venting systems, allowing equipment to quickly release internal pressure during an explosion, minimizing damage to the container and the surrounding environment. This product features explosion-relief wall panels and blast-resistant structures to effectively mitigate risks during explosions.
Compliance with Hazardous Material Storage Standards
This product meets the requirements for hazardous material storage as follows:
- Outdoor Storage Areas: Suitable for storing six categories of hazardous materials outside buildings.
- Indoor Storage Areas: Designed for storing six categories of hazardous materials inside buildings.
- Structural Requirements:
- Constructed with fire-resistant and non-combustible materials.
- Equipped with fire doors rated for at least one hour of fire resistance.
- Waterproof flooring; outdoor units include 150mm-high containment barriers made from concrete or non-combustible materials and feature liquid collection facilities.
Product Specifications
- Purpose: Explosion-proof, explosion-relief, and fire-protected storage for flammable and hazardous chemicals.
- Application: Outdoor storage of flammable liquids, compressed gases, and other chemical materials.

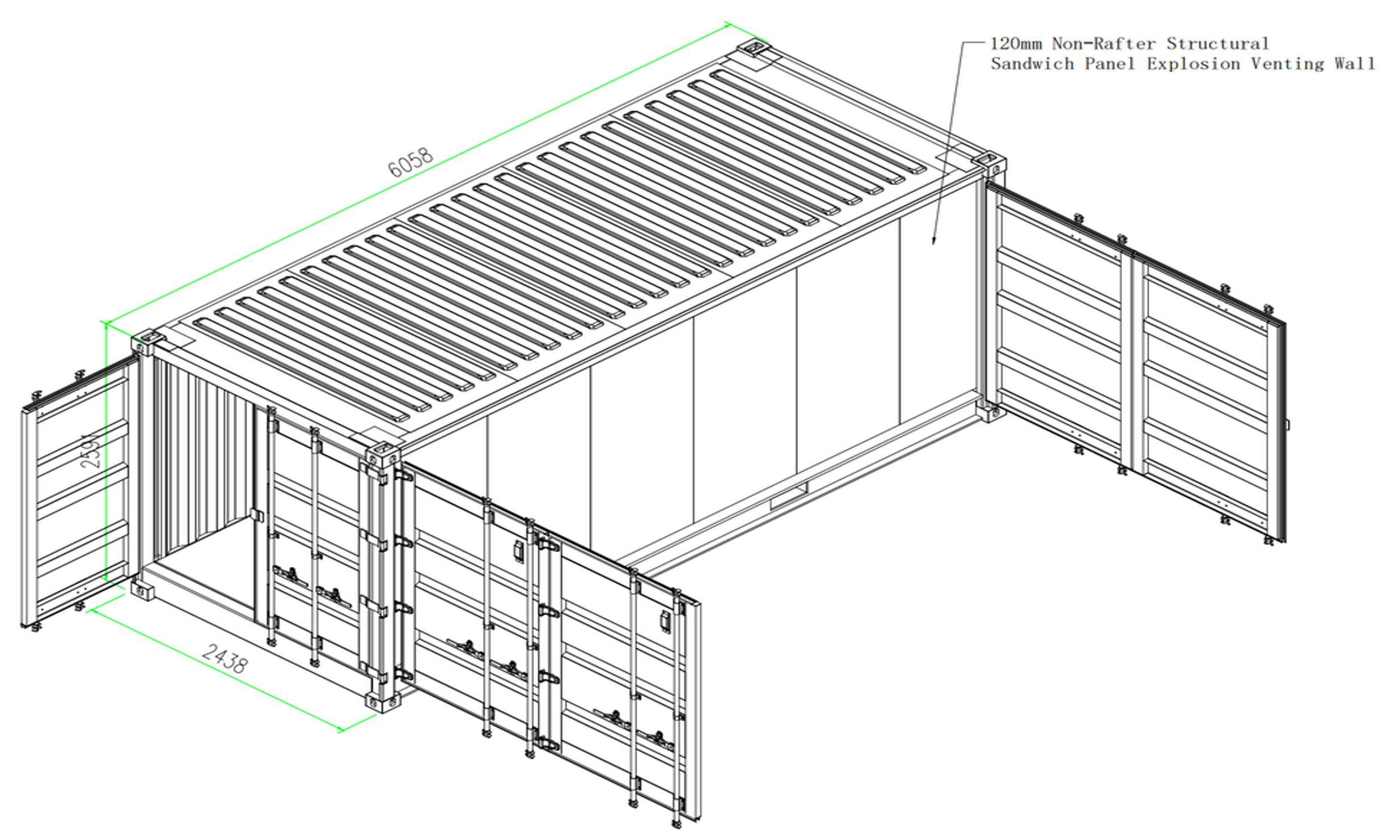

- Dimensions: 6058mm x 2438mm x 2591mm.
- Maximum Gross Weight: 30,860 kg (68,035 lbs).
- Net Weight: 3,460 kg (7,628 lbs).
- Explosion-Relief Wall Panels:
- Material: 120mm purlin-free sandwich panels.
- Structure: Inner layer of rock wool (128 kg/m³ density) and 0.6mm steel outer layer.
- Leakproof Tray:
- FM 6049 compliant.
- Supports 4-ton IBC storage.
Key Features
- Blast-Resistant Framework: Reinforced structural design enhances explosion resistance, offering comprehensive protection for storage environments.
- Explosion-Relief Wall Panels: Rapidly release pressure during explosions, significantly reducing risks.
- FM-Certified Components: Incorporates FM-certified materials to ensure compliance with international safety standards.
- Indoor Leakproof Tray: Provides 1-ton IBC capacity to prevent environmental contamination from chemical spills.
- Fire Protection:
- Container walls and roof have passed CNS 3-hour fire wall tests.
- Fire-resistant and explosion-proof doors have passed CNS 2-hour fire tests, fully meeting regulatory requirements.
Wide Range of Applications
This explosion-relief container for flammable and explosive chemicals is designed to address the safety storage needs of hazardous materials. It is suitable for various commercial and industrial scenarios, including:
- Safe storage and distribution of flammable and non-flammable substances.
- High-security facilities like chemical plants and warehouses.
This product not only ensures the secure storage of chemicals but also provides enterprises with comprehensive safety and compliance support. Liansuo Construction Technology is dedicated to innovation and the integration of advanced technology, leading the way in setting new international safety standards.
